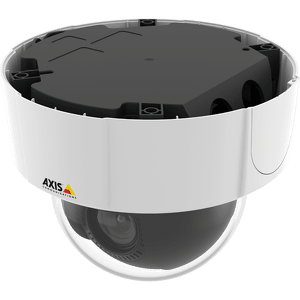

AXIS M5525-E PTZ Network Camera is a compact pan-tilt-zoom camera with HDTV 1080p resolution, 10x optical zoom, and autofocus, enabling great video quality in both overview and detail. Day/night functionality and WDR – Forensic Capture ensures maintained image quality in low or mixed light, and scene profiles are included for automatic optimization. AXIS M5525-E is compatible with any Axis PTZ mount for outdoor installation, but can also be surface-mounted indoors. Protected against dust, rain, snow, and corrosion, the camera operates in temperatures from -20 °C to 50 °C (-4 °F to 122 °F). The microSD card slot enables local video storage.
Aperture | 1.6-3.0 |
Day and night functionality | Yes |
Focal length | 4.7 - 47 |
Horizontal field of view | 61.8 - 6.7 |
Image sensor | CMOS |
Image sensor size | 1/2.8 |
Megapixel sensor | Yes |
Min illumination and light sensitivity. BW | 0.01 |
Min illumination and light sensitivity. Color | 0.45 |
Vertical field of view | 37.2-3.8 |
Zipstream | Yes |
H.264 | Yes |
Max frames per second | 25/30 |
Max video resolution | 1920x1080 |
Wide Dynamic Range | Forensic Capture |
Audio support | Yes |
Two-way audio | Yes |
AXIS Camera Application Platform | Yes |
Alarm inputs and outputs | 4 |
IP rating | IP66 |
Local storage. Memory card | Yes |
Operational temperature degrees | -20 to 50 |
Outdoor Ready | Yes |
Max power consumption | 11.5 |
Power over Ethernet | Yes |
Power over Ethernet Class | 3 |
