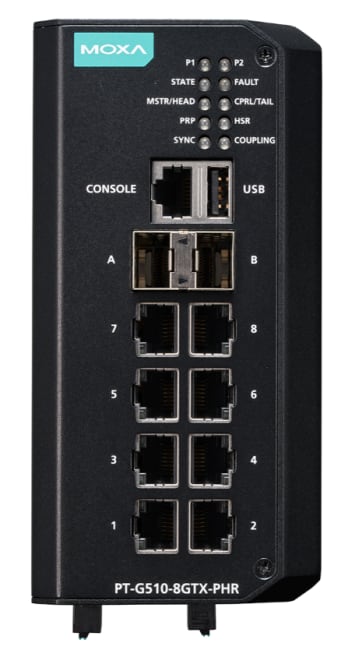

EC 61850-3 and IEC 62439-3 full Gigabit managed Ethernet switch with 8 100/1000BaseT(X) ports, 2 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature

Moxa's Layer 2 managed switches feature industrial-grade reliability, network redundancy, and security features based on the IEC 62443 standard. We offer toughened, industry-specific products with multiple industry certifications, such as parts of the EN 50155 standard for rail applications, IEC 61850-3 for power automation systems, and NEMA TS2 for intelligent transportation systems.

IEC 61850-3 Edition 2 Class 2 compliant

 IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant

 IEEE 1588 hardware time stamp supported

 Supports IEEE C37.238 and IEC 61850-9-3 power profiles

 GOOSE Check for easy troubleshooting

 Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA

 -40 to 75°C operating temperature range
