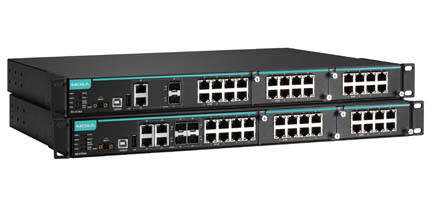

Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, 2 slots for Fast Ethernet modules, front cabling, 2 isolated power supplies (24 VDC), -40 to 75°C operating temperature

1 relay output with current carrying capacity of 1 A @ 24 VDC
8 built-in PoE+ ports compliant with IEEE 802.3af/at (IKS-6728A-8PoE)

 Up to 36 W output per PoE+ port (IKS-6728A-8PoE)

 Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches)  , and STP/RSTP/MSTP for network redundancy

 1 kV LAN surge protection for extreme outdoor environments

 PoE diagnostics for powered-device mode analysis

 4 Gigabit combo ports for high-bandwidth communication

 -40 to 75°C operating temperature range at 720 W full loading

 Supports MXstudio for easy, visualized industrial network management

 V-ON™ ensures millisecond-level multicast data and video network recovery
