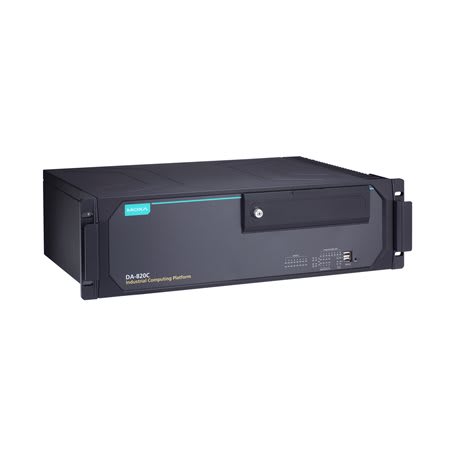

DA-820C-KL7-HH 3U computer
i7-7820EQ. -25/+55. fanless. Dual power
x86 computer with Intel® Core™ i7-7820EQ processor, 2 HDMI ports, 1 VGA port, 2 PS/2 ports, 4 Gigabit Ethernet ports, 2 RS/232/422/485 serial ports, 6 DIs, 2 DOs, 1 mSATA slot, 2 SSD slots, dual AC power, -25 to 55°C operating temperature
IEC 61850-3, IEEE 1613, and IEC 60255 compliant power-automation computer
EN 50121-4 compliant for railway wayside applications
7th Generation Intel® Xeon® and Core™ Processor
Up to 64 GB RAM (two built-in SODIMM ECC DDR4 memory slots)
4 SSD slots, supports Intel® RST RAID 0/1/5/10
PRP/HSR technology for network redundancy (with a PRP/HSR expansion module)
MMS server based on IEC 61850-90-4 for integration with Power SCADA
PTP (IEEE 1588) and IRIG-B time synchronization (with an IRIG-B expansion module)
Security options such as TPM 2.0, UEFI Secure Boot, and physical security
1 PCIe x16, 1 PCIe x4, 2 PCIe x1, and 1 PCI slots for expansion modules
Redundant power supply (100 to 240 VAC/VDC)
| Computer Barebone & Configured attributter | |
|---|---|
| Brand | Moxa |
| Montering | Rack mount |
| Sertifisering | IEC 61850-3 |
| CPU | Intel Core |
| Høyde | 3U |
| Vifteløs | Yes |
| Computer Type | 19" Rack Computer |
